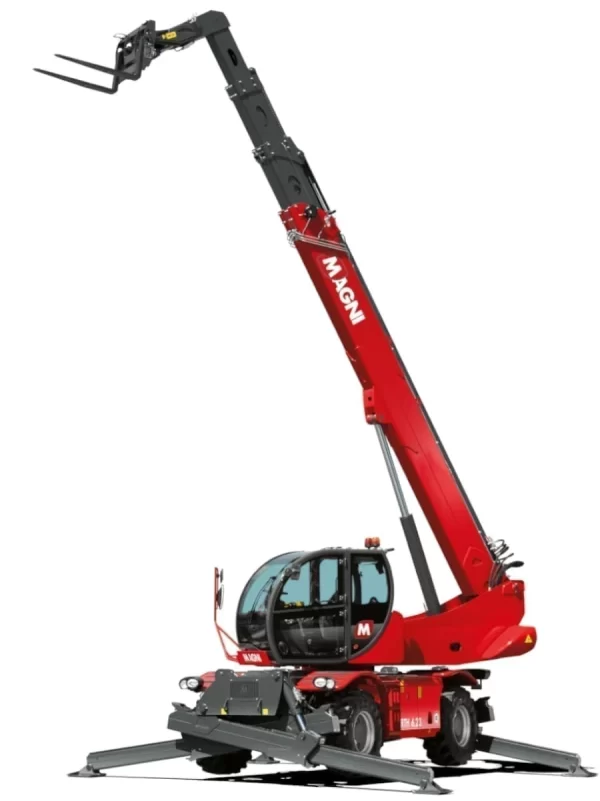

Magni, Rotating Telehandler

6.23

The RTH 6.23 is a simple yet high-performance rotating telescopic handler. It can lift loads to a height of 76 ft and is equipped with scissor stabilizers to ensure greater safety and stability during working maneuvers. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.

Stabilisers
scissors
Lifting capacity
6,000 kg
Capacity at maximum height
3,000 kg
Lifting height
23.30 m
Reach
19.70 m
Engine
Deutz TCD 3.6 L4 - stage V
Rated power
100 kW (136 Hp) @ 2.200 rpm
Number of gears
2/2
Hydraulic system
Load Sensing 350 bar
Length
7.18 m
Width
2.53 m
Ground clearance
320 mm
Unladen weight
18,000 kg
Travel speed
40 km/h
Rotation
360° (continuous)
Climate control as standard
Yes
Automatic attachment recognition
Yes
CE Certification
EN 1459-2:
concerning standards for slewing variable-reach trucks
EN 280:
concerning standards for mobile elevating work platforms
EN 13000:
concerning standards for hydraulic cranes
FOPS Level 2/ROPS
UE 2016/1628:
concerning engine emissions standards
Construction
Industry
