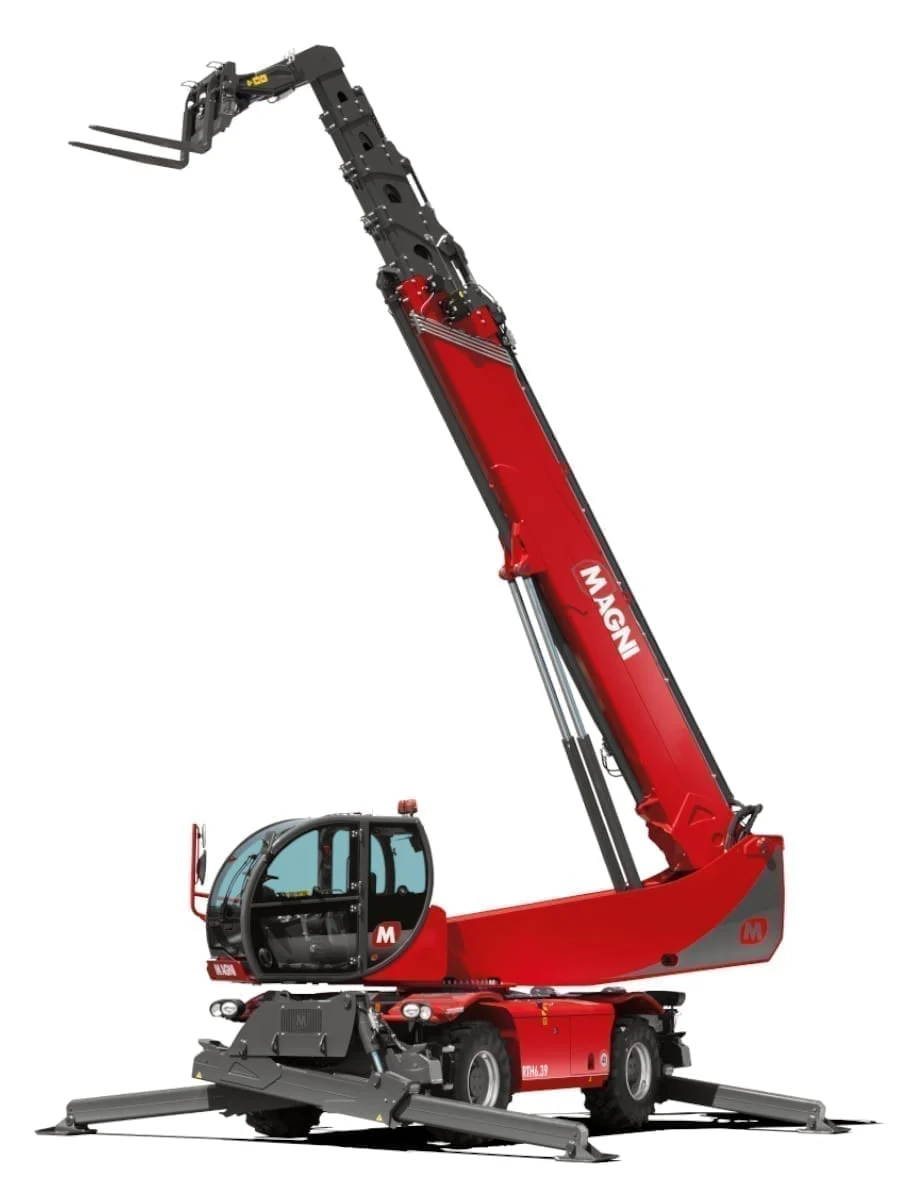

Magni, Rotating Telehandler

6.39

The RTH 6.39 is a rotating telescopic handler designed for use with heavy and bulky loads. Its 127 ft lifting height makes it extraordinarily effective on construction or industrial sites requiring high reach and lifting capacities. The inclination corrector and scissor stabilizers with large support feet offer excellent stability under all circumstances, guaranteeing perfect ground holding on all-terrain to ensure maximum operator safety. The scissor stabilizers are ideal even with limited space available; even when it is only partially stabilized, the machine is programmed to provide the best possible load chart on each side. When the stabilizers are fully extended, on the other hand, they guarantee maximum machine performance over 360° as they can work over a very wide stabilization base. It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition of the attachment and creation of the relative load charts; this telescopic handler can meet a wide range of applications in construction and industry.

Stabilizers
scissors
Lifting capacity
6,000 kg
Capacity at maximum height
2,300 kg
Lifting height
38.90 m
Reach
27 m
Engine
Volvo TAD 583 VE - Stage V
Rated power
160 kW (218 Hp) @ 2.300 rpm
Number of gears
2/2
Hydraulic system
Load Sensing 350 bar
Length
8.60 m
Width
2.54 m
Ground clearance
310 mm
Unladen weight
24,000 kg
Travel speed
40 km/h
Rotation
360° (continuous)
Climate control as standard
Yes
Automatic attachment recognition
Yes
CE Certification
EN 1459-2:
concerning standards for slewing variable-reach trucks
EN 280:
concerning standards for mobile elevating work platforms
EN 13000:
concerning standards for hydraulic cranes
FOPS Level 2/ROPS
UE 2016/1628:
concerning engine emissions standards
Construction
Industry
Special projects
