Multitool

Expand the versatility of your Hoeflon compact crane with the Hoeflon Multitool Attachment — the all-in-one lifting solution designed for precision, flexibility, and performance. Engineered to handle a variety of lifting applications, the Multitool allows you to move beams, pipes, glass panels, and pallets effortlessly and with complete control.

hoeflon multitool attachment main specs image

Developed in close collaboration with field professionals, the Hoeflon Multitool delivers the reliability and ease of use that operators demand. It’s compatible with the Hoeflon C6e, C10e, and C30e spider cranes, making it the perfect upgrade for businesses looking to maximise productivity across multiple job types.

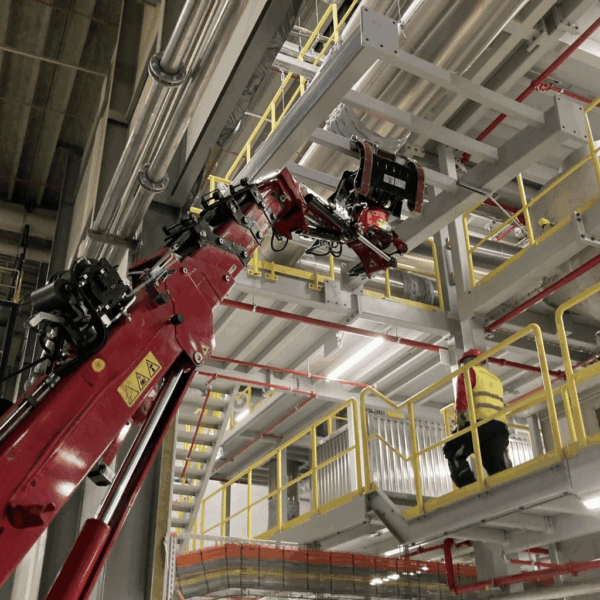

Featuring exceptional rotational axes and a range of interchangeable attachments, the Multitool transforms your compact crane into a true multifunctional lifting machine — ideal for construction, glazing, industrial maintenance, and logistics operations.

Attachment Options

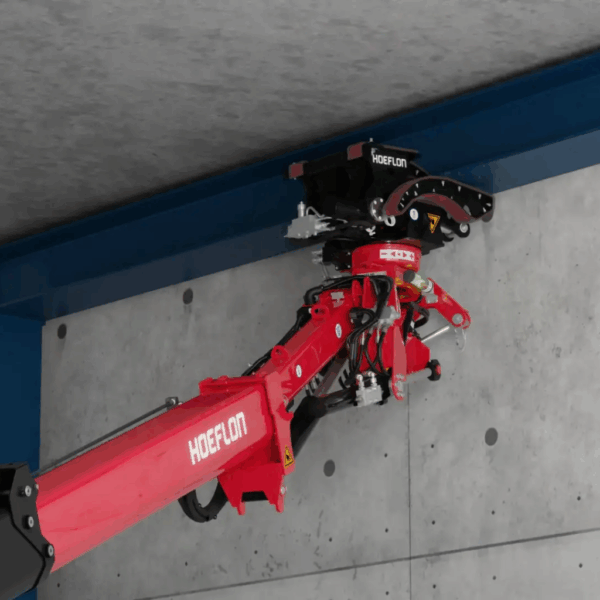

multiclaw attachment

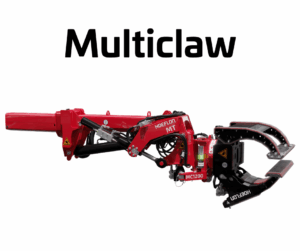

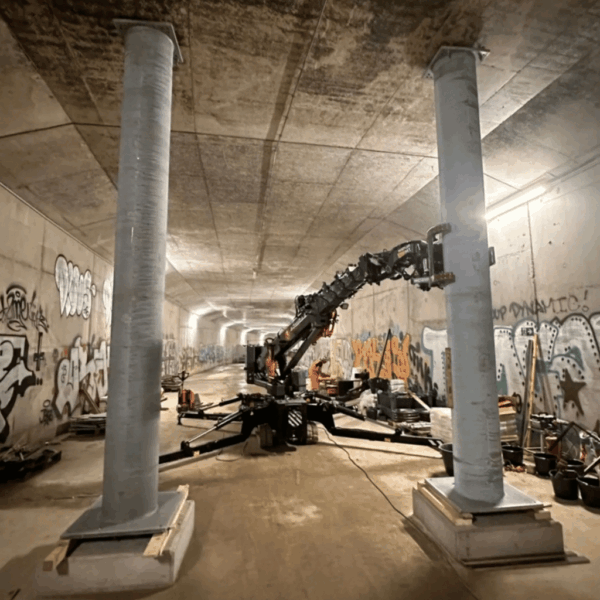

  • Multiclaw – For Beams & Pipes

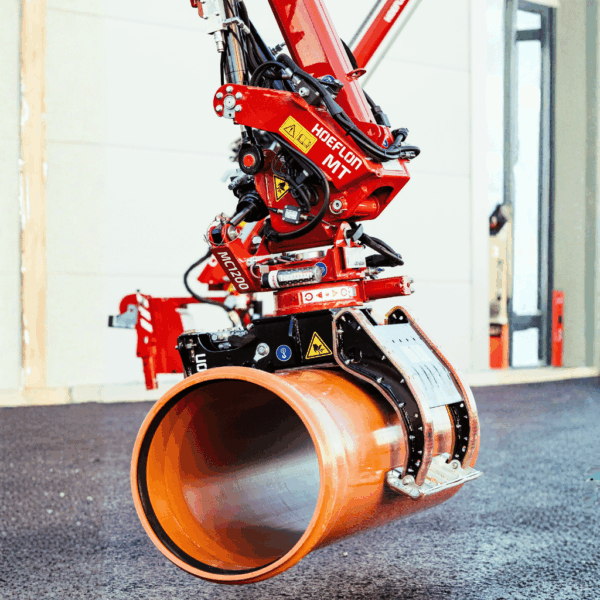

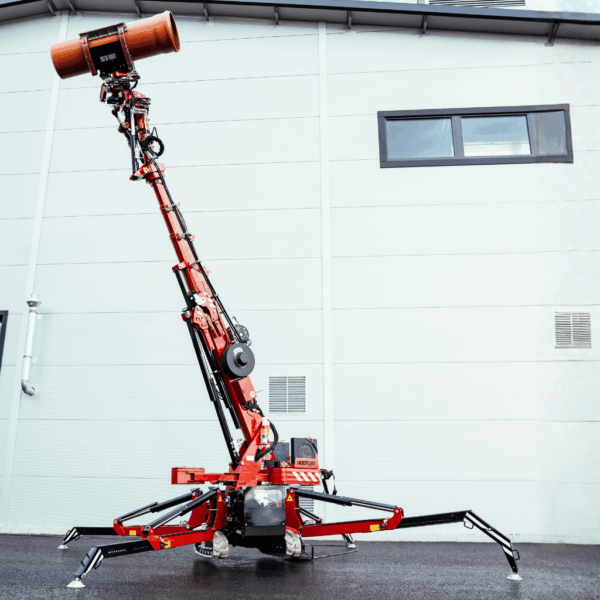

Securely grip and position beams or pipes with precision. The Multiclaw’s detachable clamping plates increase the surface area for larger objects, enabling both internal and external clamping for beams, plates, and profiles.

multifork

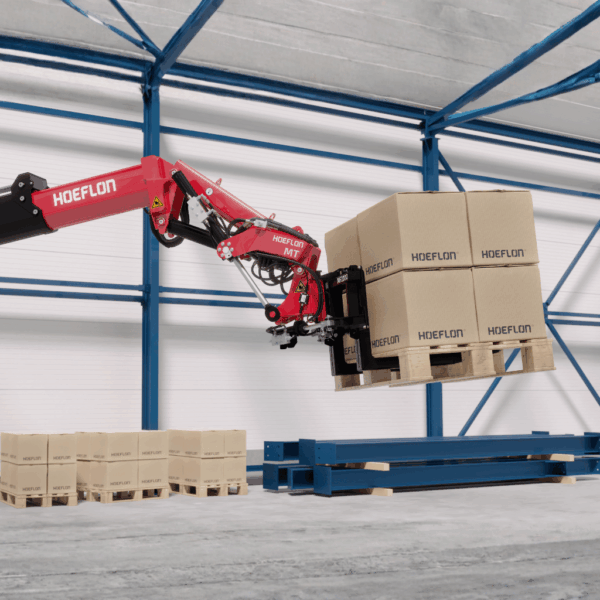

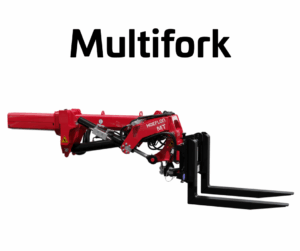

  • Multifork – For Pallets

Easily lift and transport pallets with the Multifork attachment. Combined with the long reach of Hoeflon spider cranes, it allows you to safely position pallets at height or in tight, hard-to-reach spaces.

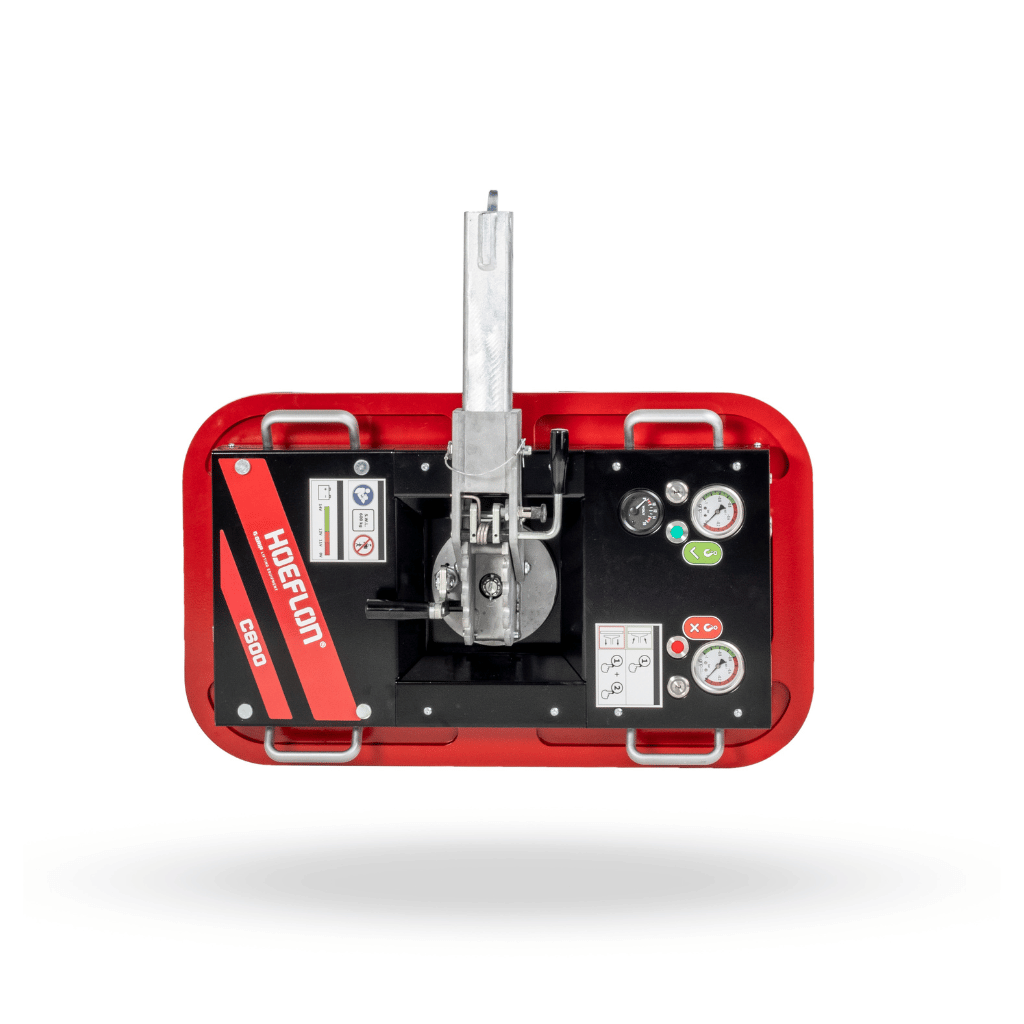

multivac

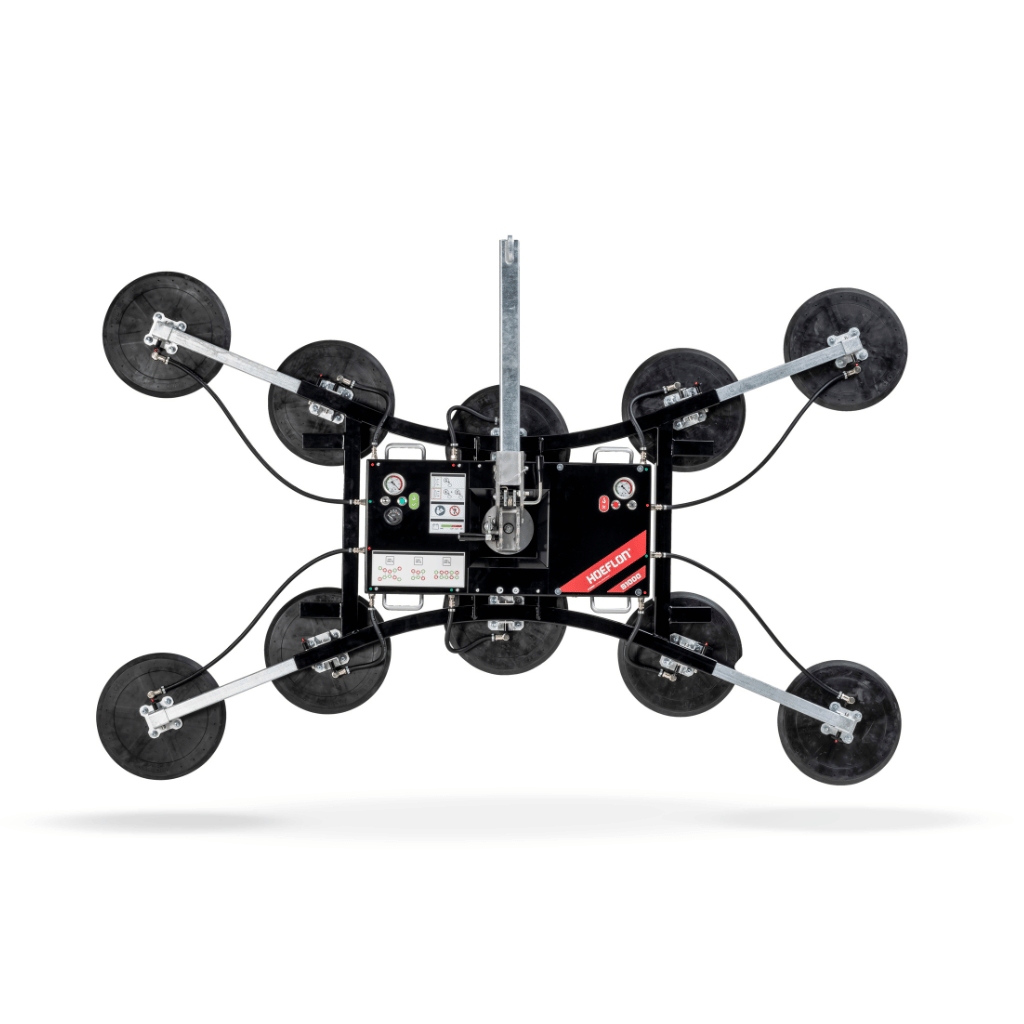

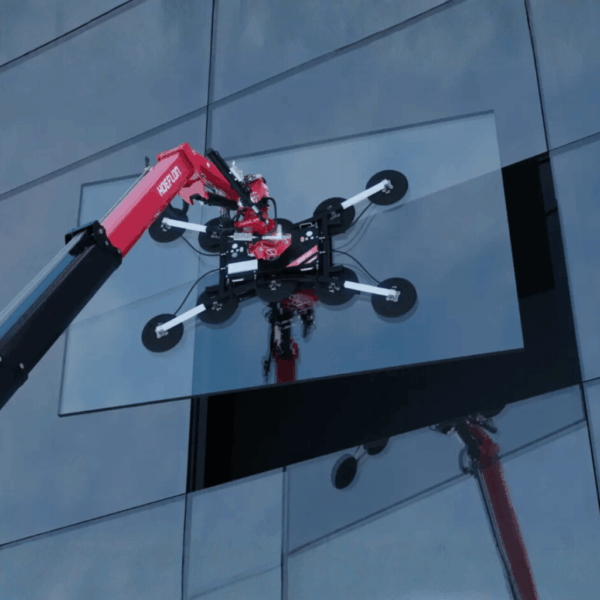

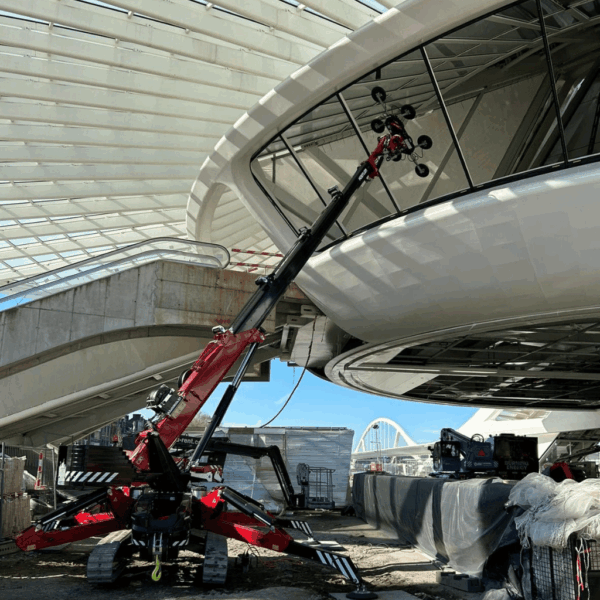

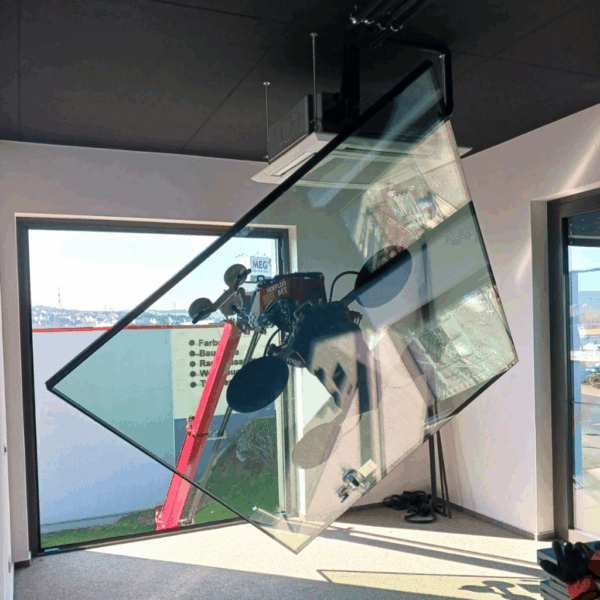

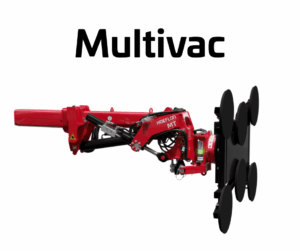

  • Multivac – For Glass Panels

Handle glass sheets safely and efficiently with the Multivac. Fitted via an adapter and compatible with a glass suction lifter, it delivers the same freedom of movement as the beam clamp — perfect for precision glazing and façade installation.

Key Features

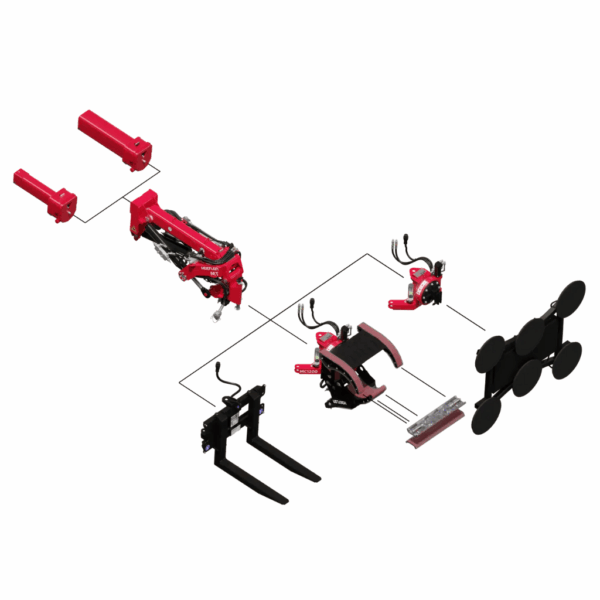

  • Multiple attachments — Multiclaw, Multifork, and Multivac
  • Compatible with Hoeflon C6e, C10e, and C30e spider cranes

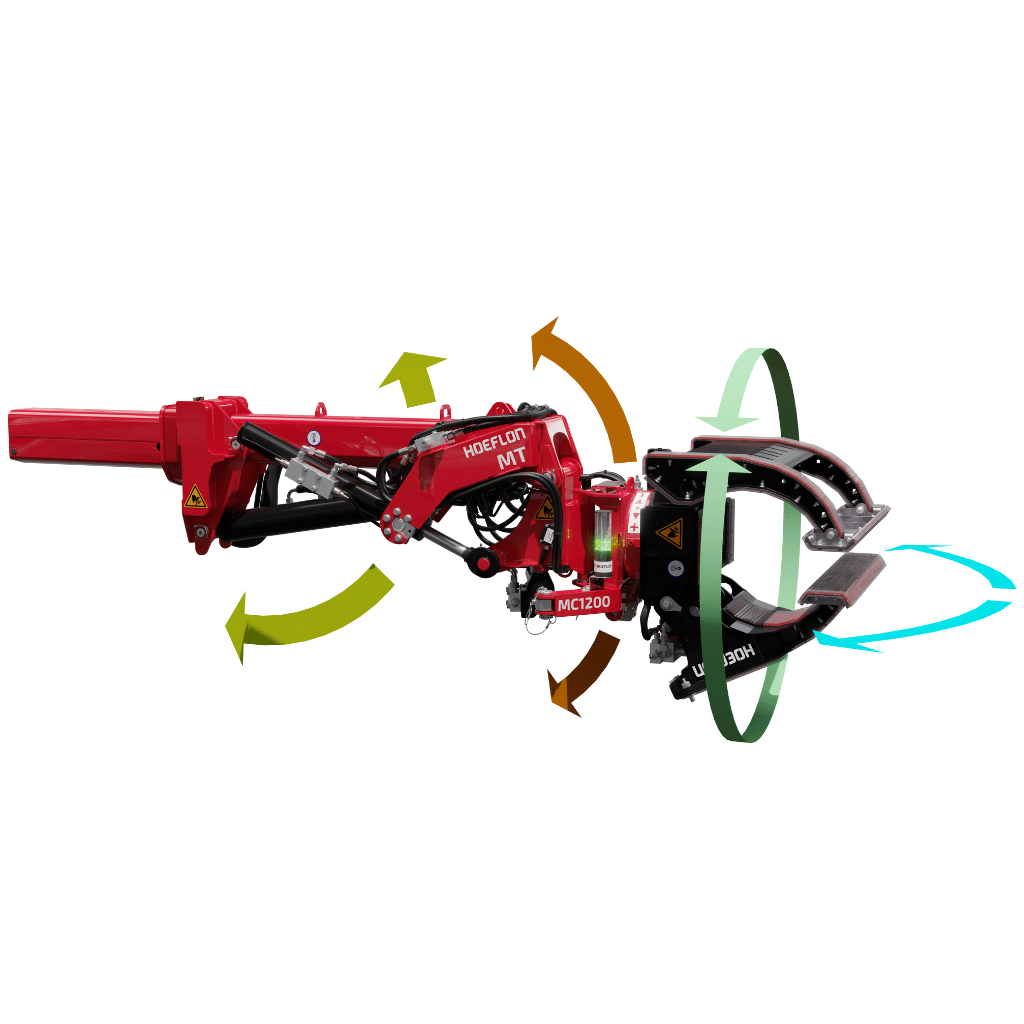

  • Exceptional rotational axes — precise and smooth movement
  • Versatile lifting applications — beams, pipes, glass, and pallets
  • Designed with user input — reliable, efficient, and field-tested
  • Enhances productivity — turns one compact crane into a multi-purpose tool
Adapter C10
28 kg
Adapter C6
24 kg
Pipe diameter of beam clamp
≤ 500 mm diameter
Weight frame incl. pallet fork
64 kg
Weight clamping jaws
188 kg
Weight machine (Multivac)
85 kg to 110 kg
Weight Multitool incl. glass suction lifter
198 kg (152 kg + 46 kg)
Weight Multitool incl. clamping jaws
340 kg (152kg + 188 kg)
Weight Multitool incl. pallet fork frame
216 kg (152 kg + 64 kg)
Lifting capacity eye (Multiclaw)
2000 kg
Lifting capacity eye (Multivac)
2000 kg
Jib
75 kg
Tilt angle
200 degrees
Fork length
800 mm
Maximum lifting capacity beam clamp
1250 kg
Maximum lifting capacity Multivac
1000 kg
Maximum lifting capacity fork frame
2000 kg
Tilt section + slewing section
77 kg
Rotation range (Multiclaw)
Unlimited
Rotation range (Multivac)
Unlimited
Rotation angle
Unlimited
Swivel angle
-45 degrees to +50 degrees
